P80

Technical

Data

Current

100 Amp

Duty Cycle

60%

Gas

Air

Gas Pressure

4.5~5.0 Bar

Gas Flow

220LPM

Ignition

HF

Post Flow

80 sec.recommended

Standard Length

5M

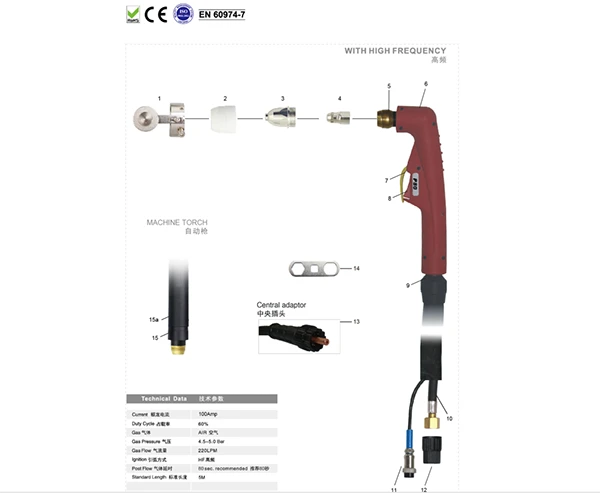

Position

Code

Ref.

Description

（With "●" is the standard configuration）

●1

HBISM0709

CV0204

Isolated Wheel/P80

●2

HBIVS0013

TGN02004

Ceramic Outside Nozzle/P80

3

Tip

3.1

HBIVU0039-10

TET01110

Tip Φ1.0mm/P80

3.2

HBIVU0039-13

TET01130

Tip Φ1.3mm/P80

●3.3

HBIVU0039-15

TET01512

Tip Φ1.5mm/P80

3.4

HBIVU0039-17

PD0084-17

Tip Φ1.7mm/PAN P80

●4

HBIVB0020

TET02033

Electrode/P80

●5

HBIVZ0093

TKU08103

Plasma Torch Head P80/light

6

HBIGV0035

TP0085

Plasma Handle Manual/A Series/Red

7

HBIHJ0722

BW0277

Protection part/Plasma/Yellow

8

HBIHQ0070

185.0031

Trigger

9

HBIHJ0893

BW0348

Joint/small/new type

10

Cable assembly

10.1

HBIVN00810050-00

-

Cable assembly/P80/10MMQ/5M center adaptor

10.2

HBIVN00810051-00

-

Cable assembly/P80/10MMQ/5M ATT.1/4G

10.3

HBIVN00810052-00

-

Cable assembly/P80/10MMQ/5M ATT.3/8G

10.4

HBIVN00810054-00

-

Cable assembly/P80/10MMQ/5M M14×1.5

10.5

HBIVN00810055-00

-

Cable assembly/P80/10MMQ/5M M16×1.5

10.6

HBIVN10810050-00

-

Cable assembly/PP80/10MMQ/5M center adaptor

10.7

HBIVN10810051-00

-

Cable assembly/PP80/10MMQ/5M ATT.1/4G

10.8

HBIVN10810052-00

-

Cable assembly/PP80/10MMQ/5M ATT.3/8G

10.9

HBIVN10810054-00

-

Cable assembly/PP80/10MMQ/5M M14×1.5

10.1

HBIVN10810055-00

-

Cable assembly/PP80/10MMQ/5M M16×1.5

11

HBIHJ0029

BW0074

Protection nut CH19

12

HBITY2083

AU7038

Connector M8/2MMQ

13

HBIHQ0757

BX0252

Connector 2 holes

14

HBICG6009

MT1004

Spanner for P80

15

HBIZX0078

FY0023

Central adaptor torch side Plasma 5 pins

16

HBIVZ0070

PF0020

Plasma machine torch head P80

16a

HBIGV0705

TP0205

Fiberglass position tube/LTM torch

Code

Ref.

Description

HBIVT0647

PA0192

Plasma Cutting Torch/P80/10mmq/5m CENTER ADAPTOR

HBIVT0646

PA0191

Plasma Cutting Torch/P80/10mmq/5m 3/8G

HBIVT0985

PA0435

Plasma Cutting Torch/P80/10mmq/5m M16x1.5

HBIVT0981

PA0436

Plasma Cutting Torch/P80/10mmq/5m 1/4G

HBIVT0982

PA0437

Plasma Cutting Torch/P80/10mmq/5m M14x1.5

HBIVT8102

PA3602

Plasma Cutting Torch/P80/14mmq/5m M16x1.5

HBIVT8103

PA3603

Plasma Cutting Torch/P80/12mmq/5m M16x1.5

Code

Ref.

Description

HBIVT0100

PA0600

Plasma auto torch/PP80/5M 1/4G

HBIVT0106

PA0601

Plasma auto torch/PP80/5M 3/8G

HBIVT0107

PA0602

Plasma auto torch/PP80/5M M14×1.5

HBIVT0108

PA0603

Plasma auto torch/PP80/5M M16×1.5

HBIVT0109

PA0604

Plasma auto torch/PP80/5M center adaptor
