MIG 25

TORCH 25

Industrial-Grade Precision for Demanding Welding Operations

Elevate your production efficiency with the MIG Welding Torch Series, trusted by metal fabricators, automotive manufacturers, and heavy machinery workshops worldwide. Engineered for high-amperage performance and extreme durability, these torches deliver flawless arc stability, reduced spatter, and unmatched operator comfort—ideal for 24/7 industrial environments.

Number of views： 2998
QR code：

Inquiry

Product description

TORCH 25 Technical Data:

Type:	TORCH 25
Cooling:	Gas Cooled
Duty cycle 60%:	230Amp CO2, 200Amp MIX
Wire Size:	Φ0.8-1.2mm

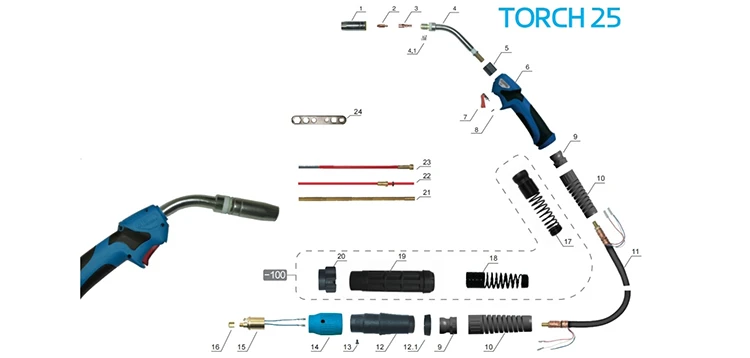

Position	Code	Ref.	Description
1	ICS0078	145.0100	Gas nozzle Φ15mm 25AK
2	ICU0004-10	140.0242	Contact tip/Φ1.0mm E-CU/M6×28
3	ICF0061	142.0001	Gas diffuser M6/35MM/25AK
4	ICZ0088	004.0012	Torch head 25AK; Torch head 24KD
4.1	IFT0809	003.0013	Nozzle spring 25AK; Trigger red 21.8MM
5	IHJ0030-01	400.0044	Plastic body
6	ICV0890-01		MIG grip handle/blue body and black rubber/without logo/
6.1	ICV0890		MIG grip handle/blue body and black rubber
7	IHQ0070	185.0031	Trigger red 21.8MM
8	IFT0874		Screw D.3x10 UNI9707
9	IHJ0021		Ball joint
10	IFT0882		Spring/cable support/gas
11	ICN0664		Coaxial cable 3M
12	IHJ0703		Back box hole
12.1	IHJ0715		Closing ring/grip handle
13	IFT0063		Screw M4X6 UNI 6107
14	IHJ0072		Gun plug nut new blue
15	ITB0059	501.2155	Euro central adapter body/spring pins
16	IZT0071	501.0082	Liner nut
17	IZH0864		Joint with spring
18	IFT0897		Spring/cable support/black
19	IHJ0645		Back box hole
20	IHJ0070		Gun plug nut
21	IIC0220		Brass liner Φ4.0X2.0mm 0.35m
22	IIC0160	126.0021	Teflon liner Φ4.0 X 2.0mm 3m red
23	IIC0560	124.0026	Insulated steel liner Φ1.0-1.2mm 3.4M red
24	ICG6000		Spanner for mig

Code	Ref.	Description
ICT2798-36		MIG 25AK torch 3m/euro adapter/spring pins
ICT2799-36		MIG 25AK torch 4m/euro adapter/spring pins
ICT2795-36		MIG 25AK torch 5m/euro adapter/spring pins
ICT2798-100		MIG 25AK torch 3m with spring pins
ICT2799-100		MIG 25AK torch 4m with spring pins
ICT2795-100		MIG 25AK torch 5m with spring pins
