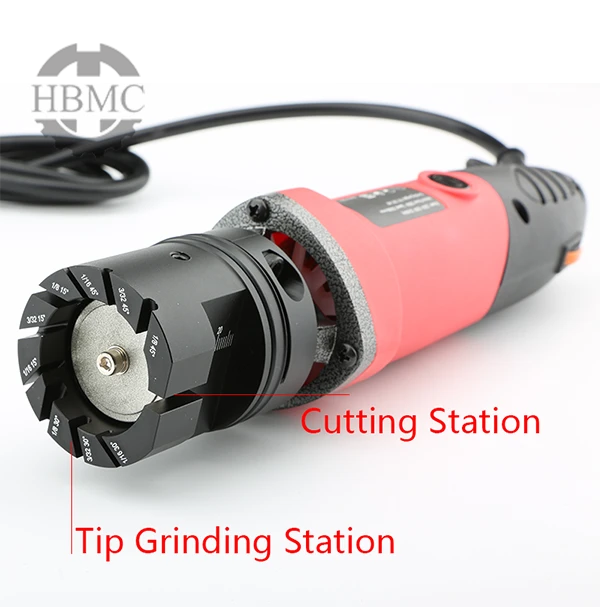

To keep the grinding wheel of a Tungsten Electrode Grinder sharp, efficient, and safe for TIG welding preparation, regular maintenance is critical. The grinding wheel (typically diamond or cubic boron nitride, CBN—both hard, durable materials optimized for tungsten) degrades over time due to dust buildup, wear, and heat. Below are the essential maintenance tasks, organized by frequency (daily, weekly, monthly) and purpose, to preserve wheel sharpness and functionality:
1. Daily Maintenance: Prevent Immediate Buildup and Damage
These quick tasks should be done before and after each use to avoid wheel clogging (the most common cause of dullness) and ensure consistent performance:
a. Clean the Wheel of Tungsten Dust and Debris
Tungsten shavings and fine abrasive particles accumulate on the wheel’s surface during grinding, clogging its pores and reducing its ability to cut (a phenomenon called "loading"). A clogged wheel acts like a "sanding pad" instead of a sharp grinder—requiring more pressure, generating excess heat, and producing rough tungsten tips.
Turn off the grinder and disconnect power.
Use a soft-bristle brush (e.g., a small parts brush or old toothbrush) to gently scrub the wheel’s surface in a circular motion. Focus on areas with visible dust buildup (often near the center or along the grinding path).
For stubborn buildup, use compressed air (30–50 PSI) to blow out pores—hold the air nozzle 6–8 inches from the wheel to avoid damaging the abrasive layer. Do not use water—moisture can cause tungsten dust to harden on the wheel or rust metal components.
Why it matters: Daily cleaning removes 90% of surface debris, keeping the wheel’s abrasive grains exposed and sharp.
b. Inspect the Wheel for Visible Damage
Even small cracks or chips in the wheel can worsen during use, leading to uneven grinding or wheel failure. A damaged wheel also risks contaminating tungsten tips with abrasive fragments.
c. Verify Wheel Alignment
A misaligned wheel (tilted or off-center on the grinder’s spindle) causes uneven wear—one side of the wheel grinds more than the other, leading to premature dullness and lopsided tungsten tips.
With the grinder powered off, spin the wheel by hand. It should rotate smoothly without rubbing against the grinder’s guard, housing, or electrode guide.
Check if the wheel’s surface is parallel to the electrode holder—use a straightedge to align the wheel’s edge with the holder’s guide. If not, adjust the spindle or wheel mount (follow the grinder’s manual for alignment steps).
Why it matters: Proper alignment ensures even wear across the wheel’s surface, extending its lifespan and maintaining consistent grinding performance.
2. Weekly Maintenance: Restore Sharpness and Prevent Wear
These tasks address deeper buildup and mild wear, restoring the wheel’s cutting ability and preventing long-term damage:
a. Dress the Wheel to Expose Fresh Abrasive Grains
Over time, the wheel’s outer abrasive grains wear down (becoming smooth and dull) or break off—this is normal, but it reduces grinding efficiency. "Dressing" the wheel removes worn grains and exposes fresh, sharp ones underneath.
Turn on the grinder and let the wheel reach full speed.
Hold the dressing tool firmly with both hands and gently touch the diamond tip to the wheel’s surface. Move the tool slowly across the wheel in a straight line (from edge to edge) 2–3 times.
Keep pressure light—too much force will remove unnecessary abrasive material, shortening the wheel’s life.
When to dress: If the wheel takes longer to grind tungsten, leaves a rough tip, or generates excess heat (tungsten feels hot to the touch), it’s time to dress.
b. Clean the Wheel’s Hub and Mounting Area
Dust and debris can accumulate between the wheel and its mounting flange (the metal disc that secures the wheel to the spindle). This buildup causes the wheel to sit unevenly, leading to misalignment and uneven wear.
Disconnect power and remove the wheel (follow the grinder’s manual: lock the spindle, loosen the nut, and lift the wheel off).
Wipe the wheel’s inner hub (the hole where it attaches to the spindle) and the mounting flange with a dry cloth or alcohol wipe to remove dust, oil, or residue.
Reinstall the wheel, ensuring it sits flush against the flange—do not overtighten the nut (this can warp the wheel).
Why it matters: A clean mounting area ensures the wheel spins true, preventing vibration and extending its sharpness.
3. Monthly Maintenance: Evaluate Long-Term Wear and Replace When Needed
Even with proper care, grinding wheels have a finite lifespan—diamond/CBN wheels typically last 50–100 tungsten sharpenings (depending on use frequency and tungsten diameter). Monthly checks help you replace the wheel before it compromises tip quality:
a. Measure Wheel Diameter and Thickness
Wear reduces the wheel’s diameter and thickness over time. A wheel that’s too small (e.g., a 50mm wheel worn down to 45mm) may not align with the grinder’s electrode guide, leading to inconsistent grinding.
b. Test Grinding Performance with a Scrap Tungsten
The best way to evaluate wheel sharpness is to test it on a scrap tungsten electrode (e.g., a 2.4mm electrode you don’t need for welding):
Set the grinder to a standard angle (e.g., 20°) and grind the scrap tungsten using light pressure.
Inspect the tip: A sharp wheel will produce a smooth, even conical tip with no burrs, oxidation (black discoloration), or rough edges.
If the tip is rough, uneven, or requires excessive pressure to shape, the wheel is dull and needs to be dressed or replaced.
Why it matters: This test ensures the wheel is still capable of producing weld-ready tungsten tips—avoiding costly rework or weld defects.
4. Key Do’s and Don’ts for Wheel Maintenance
Do: Use only diamond or CBN wheels for tungsten—aluminum oxide or silicon carbide wheels are too soft and will wear out instantly.
Don’t: Overload the wheel by grinding multiple tungstens without cleaning—buildup accelerates dullness.
Do: Store spare wheels in a dry, cool area (away from moisture and heat)—moisture can damage the wheel’s bonding agent.
Don’t: Use a wheel that’s past its expiration date (printed on the label)—resin-bonded wheels degrade over time, even if unused.
Summary
To keep a Tungsten Electrode Grinder’s wheel sharp and functional, follow this maintenance schedule:
Daily: Clean dust, inspect for damage, verify alignment.
Weekly: Dress the wheel, clean the hub/mount.
Monthly: Measure wear, test performance, replace if needed.
By following these tasks, you’ll extend the wheel’s lifespan, ensure consistent tungsten tip quality, and avoid TIG weld defects caused by dull or damaged wheels. A well-maintained wheel is not just a cost-saving measure—it’s critical for producing safe, high-quality welds.
